Metal Powder > Copper Alloy > C14500 Cu 99.5%
C14500 Cu 99.5% 20μm-63μm
C14500 Cu 99.5%, with a particle size range of 20-63 µm, is designed for advanced manufacturing with its combination of machinability, conductivity, and corrosion resistance, making it a versatile choice for many industries. High-purity copper is ideal for creating components in the electrical and electronics industries, where efficient energy transfer and heat dissipation are crucial. The addition of ~0.5% Tellurium (Te) greatly enhances the machinability of printed parts, allowing for easy machining of tight tolerances and surface finishes.
The 20-63 µm particle size suggests good spreadability for recoating systems with recoat speeds up to 260 mm/s. Other tailored particle size distributions are available upon request.
Powder designed for
Cold Spray
Powder Bed Fusion
Directed Energy Deposition
Binder Jetting
MPW metal powder is manufactured utilizing our DirectPowder™ process. The mechanical only, high-yield, no-melt technology maintains the microstructure and temper of the bar stock material, yielding a consistent size and shape and narrow particle size distribution.
Technical Data
-
Element Weight %
Cu Bal.
Te 0.4% - 0.7%
P 0.004% - 0.012%
-
Nominal particle size: 20-63 μm. Other tailored PSDs available upon request.
-
Laser Diffraction: ASTM B822/ISO13320, Results Pending
Apparent Density: ASTM B329, 3.1 g/cm3
Tapped Density: ASTM B527, 4.1 g/cm3
-

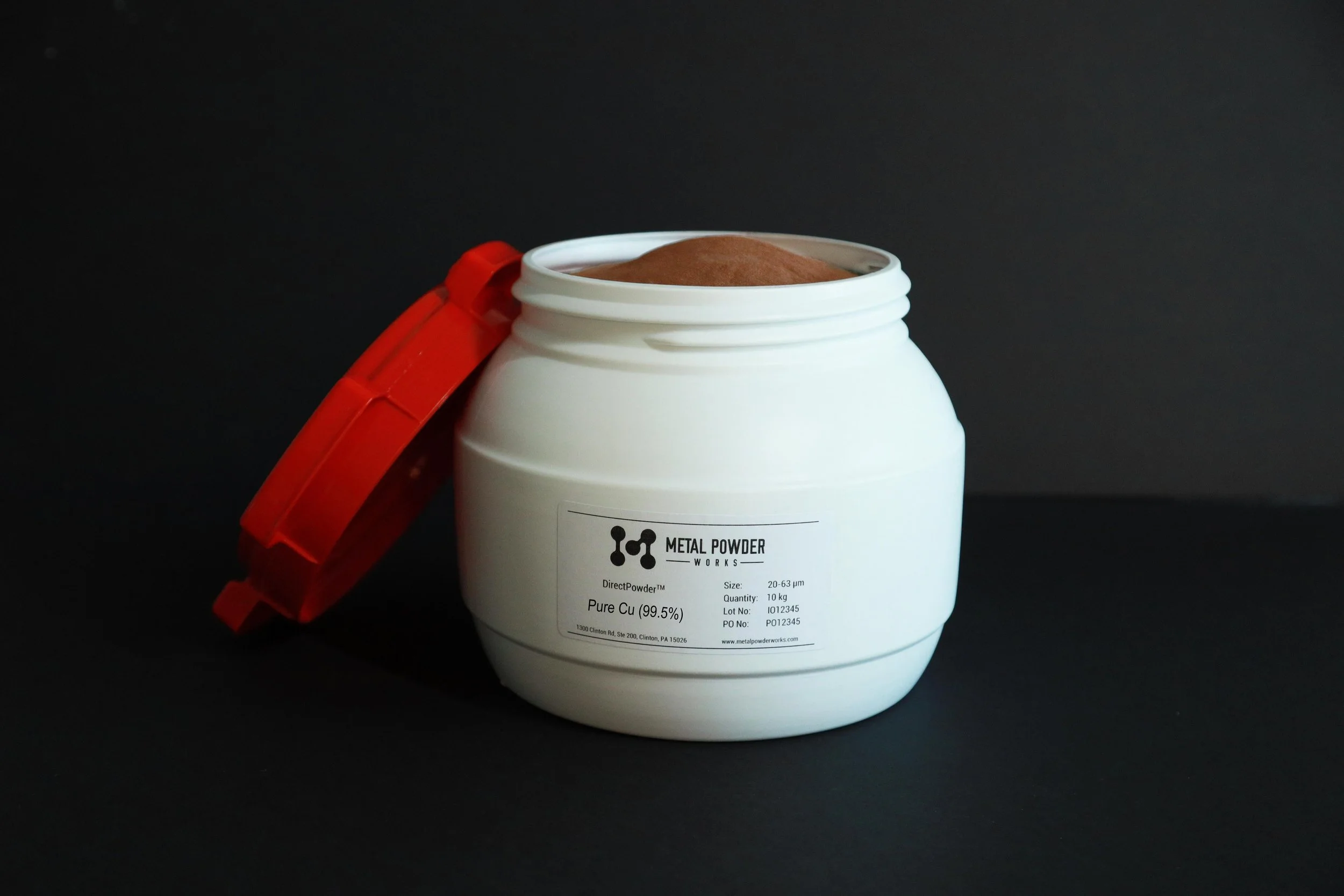

Material shall be packaged in UN certified 1L or 4L HDPE containers. Containers shall be marked with the following: Material Designation, Batch Number, Raw Material Traceability (MTR), Particle Size, Mass, and Customer PO Number. Other packaging available depending on order requirements.
